- Commodity name: Explosion proof high precision armored temperature ∞sensor
- Commodity ID: 1-6-02

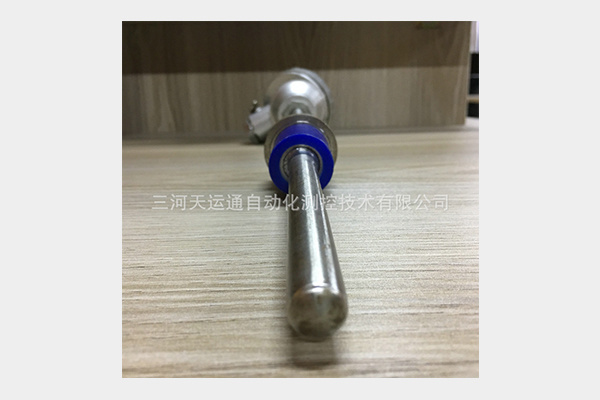

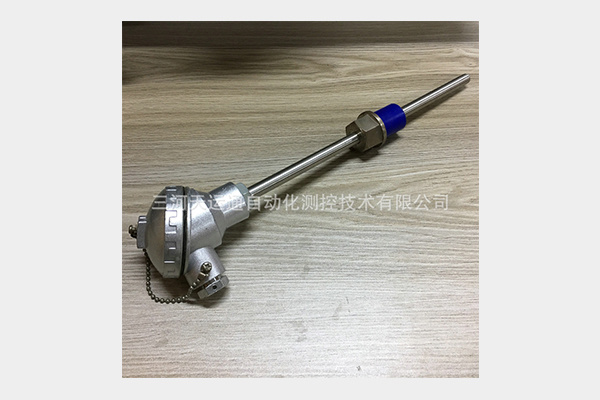

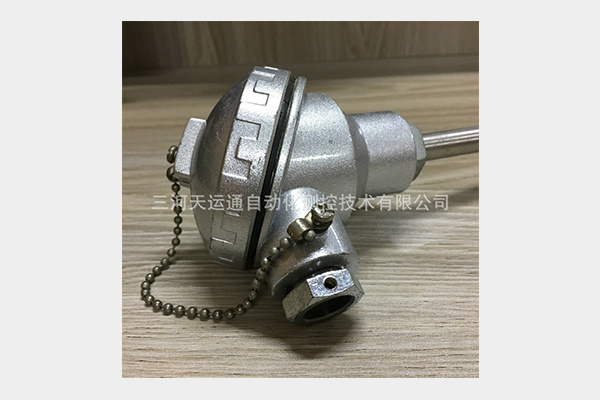

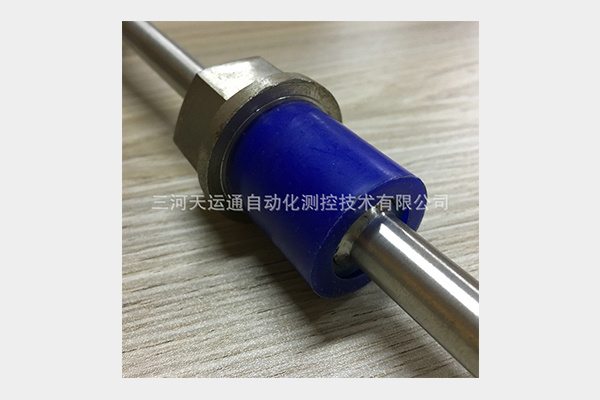

Explosion proof high precision armored temperature sensor
Technical parameters:
·High performance, all solid state, high reliability, corrosiπon resistance
·Stainless steel all welded structure and &↓quot;O" ring sealing structure are optional
·Constant voltage source and constant current source c<an be selected
·Optional shape and structure
·Warranty period: 18 months
Technical performance: constant current power supply: 1.5mA recommendΩed
Constant voltage power supply: 10VDC recommended
Input impedance: 3K Ω ~ 6K Ω (constant current supply type); £5K Ω ~ 20K Ω (constant voltage supply type)
Medium compatibility: all kinds of corrosive media compatibl∑e with 316L stainless steel filling fluid: silicone oil, olive oil
Measurement range: 0 ~ 35kpa 60MPa
Zero point output: ± 2mvdc
Full range output: ≥ 100mvdc
Compensation temperature: - 10 ~ 70 ℃
Working temperature: - 40 ～ 125 ℃
Zero temperature drift: ± 0.02% FS / ℃
Sensitivity temperature drift: ± 0.02% FS / ℃
Overload: 300% FS (< 3.5Mpa); 150% FS (≥ 3.5≠Mpa)
Natural frequency: ≥ 10kHz
Long term stability: ≤ 0.2% FS / year
